4 Flute Unequal Standard Flute Long Round Nose End Mill

1SMG204 series

category:

Difficult-to-machine materials round nose end mill

hotline:

0512-57488396

Contact

Details

Milling Cutters Made of Titanium Alloy, High Temperature Alloy, Carbon Steel, Alloy Steel and Other Difficult-to-Process Materials
Unique tool parameter design solves the problems of vibration, sticking, sharp wear and smooth chip removal.
The blade has high smoothness and improves the smoothness of processed materials.
High precision tolerance control, suitable for ultra-precision machining.

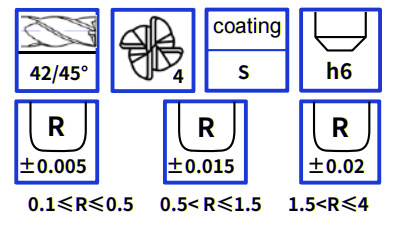

Schematic Diagram

Blade Diameter Tolerance

Blade diameter tolerance
0.2 ≤ D ≤ 3	0~-0.01
3 ＜ D ≤ 12	0~-0.02
12 ＜ D	0~-0.03

Ordering Information

Order no	Basic size					Total number of teeth
Order no	Dia	Angle	Blade length	Shank Diameter	Overall Length	Total number of teeth
1SMG204S-D4R0.3- 10-D4-50	4.0	0.3	10	4	50	4
1SMG204S-D4R0.5- 10-D4-50	4.0	0.5	10	4	50	4
1SMG204S-D5R0.5- 13-D6-50	5.0	0.5	13	6	50	4
1SMG204S-D5R1- 13-D6-50	5.0	1	13	6	50	4
1SMG204S-D6R0.5- 15-D6-50	6.0	0.5	15	6	50	4
1SMG204S-D6R1- 15-D6-50	6.0	1	15	6	50	4
1SMG204S-D8R0.5-20-D8-60	8.0	0.5	20	8	60	4
1SMG204S-D8R1-20-D8-60	8.0	1	20	8	60	4
1SMG204S-D10R0.5-25-D10-75	10.0	0.5	25	10	75	4
1SMG204S-D10R1-25-D10-75	10.0	1	25	10	75	4
1SMG204S-D10R2-25-D10-75	10.0	2	25	10	75	4
1SMG204S-D12R0.5-30-D12-75	12.0	0.5	30	12	75	4
1SMG204S-D12R1-30-D12-75	12.0	1	30	12	75	4
1SMG204S-D12R2-30-D12-75	12.0	2	30	12	75	4
1SMG204S-D12R3-30-D12-75	12.0	3	30	12	75	4
1SMG204S-D16R1-45-D16- 100	16.0	1	45	16	100	4
1SMG204S-D16R2-45-D16- 100	16.0	2	45	16	100	4
1SMG204S-D16R3-45-D16- 100	16.0	3	45	16	100	4
1SMG204S-D16R4-45-D16- 100	16.0	4	45	16	100	4
1SMG204S-D20R1-45-D20- 100	20.0	1	45	20	100	4
1SMG204S-D20R2-45-D20- 100	20.0	2	45	20	100	4
1SMG204S-D20R3-45-D20- 100	20.0	3	45	20	100	4
1SMG204S-D20R4-45-D20- 100	20.0	4	45	20	100	4
